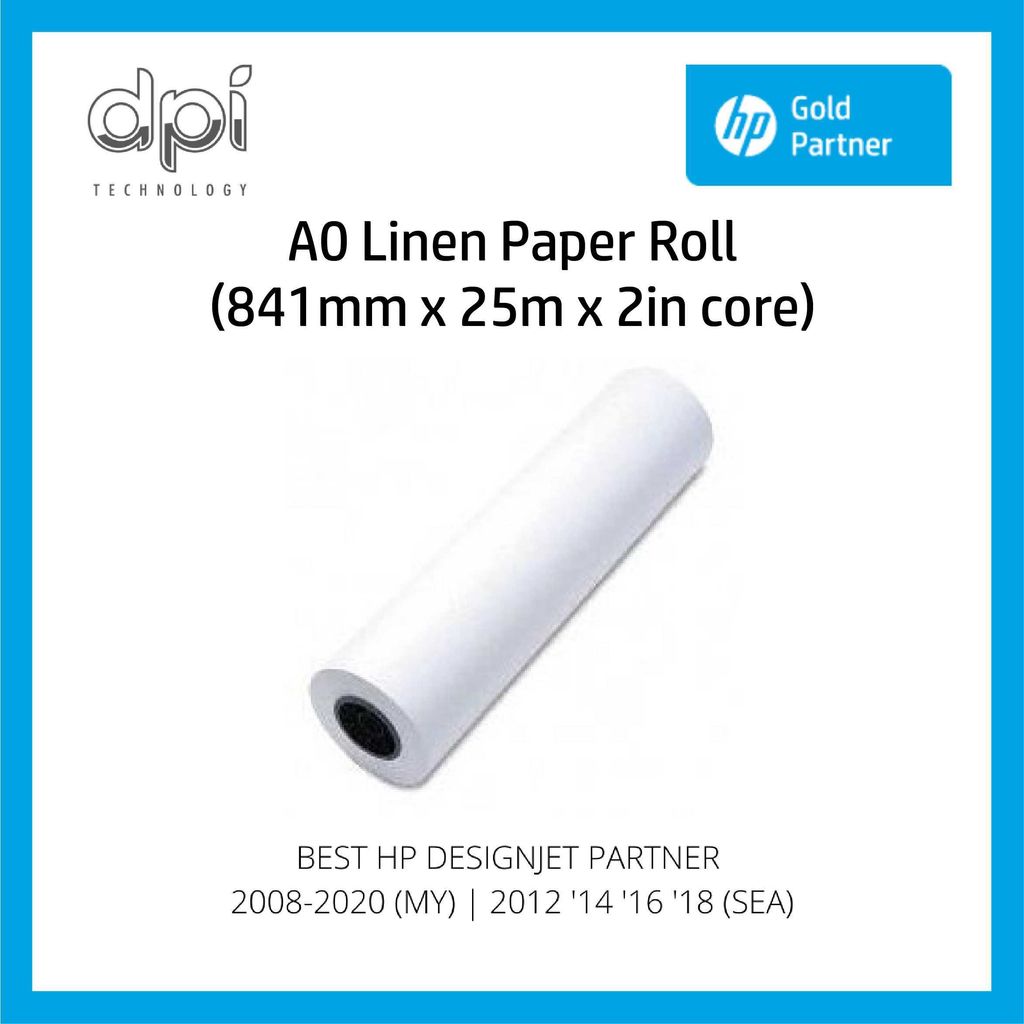

A0 linen paper roll (25 meter) overview
DPI's A0 linen paper is a 110 gsm (±) roll, 841 mm wide and 25 m long on a 2-inch core. It prints about 20 A0 or 40 A1 drawings per roll. Linen paper resists tearing and lasts in storage, so it is used for authority submissions and archive sets.
Compatible printers
Any HP DesignJet, Canon imagePROGRAF TM or Epson SureColor T plotter 36 inches (914 mm) wide or more.
Before you order
- Linen paper is often acid-free, so it resists yellowing over time, and has a subtle woven-linen texture.
- Sold as 1 roll per box.
- Need A1 linen? A1 Linen Paper Roll
- Prefer cut sheets? A1 Linen Paper Sheet (50 pcs)
- Paper and media from DPI, an HP DesignJet partner in Kuala Lumpur since 1995.
- Not sure what fits your plotter? WhatsApp +60 17-791 7001 with the model name (Monday to Friday, 9:00 am to 5:30 pm).
Technical specifications
- Paper Roll Width
- 841 mm
- Paper Roll Length
- 25 m
- Paper Weight
- 110 gsm (±)
- Roll Core Size
- 2 in core
- Approximate Prints
- 20pcs of A0 (841mm x 1189mm) / 40pcs of A1 (594mm x 841mm)
- Rolls Per Box Ordered
- 1 roll per box
Questions about the A0 Linen Paper Roll
Mainly for drawings submitted to Malaysian local authorities and for archive sets. At 110 gsm (±) it is stronger than 80 gsm plotting paper, resists tearing and keeps well in storage, and its subtle woven texture gives a premium finish.
About 20 A0 sheets (841 x 1189 mm) or 40 A1 sheets printed sideways from a 25 m roll, before allowing for trimming. For a few A1 sheets at a time, the A1 linen cut sheets save swapping rolls.
Yes. The roll has a standard 2-inch core, which loads on the spindle of HP DesignJet, Canon imagePROGRAF TM and Epson SureColor T plotters 36 inches (914 mm) wide or more.
Keep rolls in their wrapping and box until you use them, in a cool, dry room away from sunlight and air-conditioner drips. Humidity makes paper curl, which causes jams and smudged lines, so wrap part-used rolls again after use and use older stock first.
