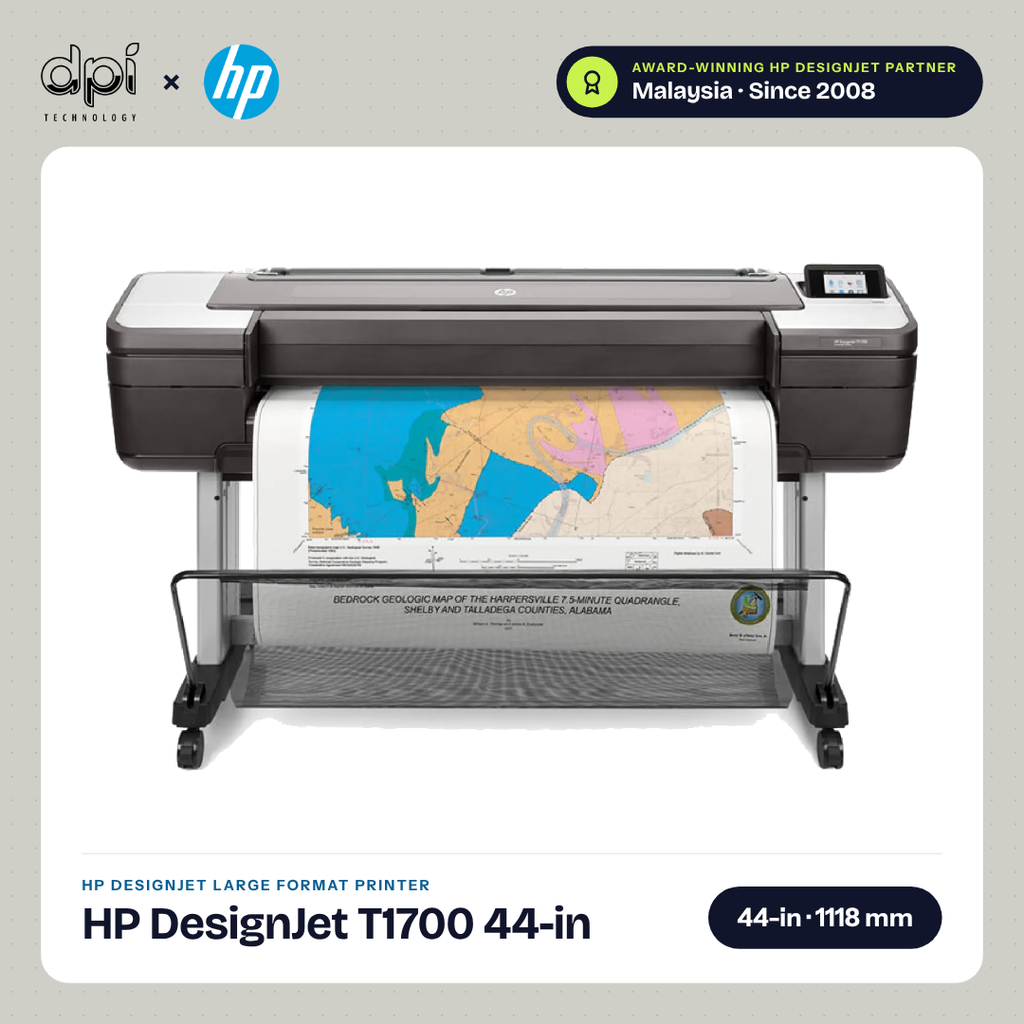

• HP Designjet T1700 Series Printer

HP Designjet T1700 Series Printer

Regular price
RM 0.00
Sale price
RM 0.00
Regular price
RM 0.00
Fast shipping | DesignJet CAD Division | DPI Technology (MY & SG)
Fast shipping
Secure payments | DesignJet CAD Division | DPI Technology (MY & SG)
Secure payments
After sales service & standard warranty | DesignJet CAD Division | DPI Technology (MY & SG)
After sales service & standard warranty
Genuine item | DesignJet CAD Division | DPI Technology (MY & SG)
Genuine item


Protect your printer and your data from external or unintended access with advanced security features. Simplify device and fleet management, including security management. Control and optimize printing costs with accounting solutions.

Stay productive—with the Adobe PDF driver, you can handle even the most complex CAD/GIS files without freezing up your PC. Work uninterrupted with dual-roll capabilities. Easily print project sets and PDF documents with HP Click printing software.

For complex CAD/GIS files, precise colors enable better decisions. Six HP Bright Office Inks provide bright color, bold image quality, color/gray/photo black for soft colors, dark tones. Reproduce layers of data with the Adobe PDF Print Engine.

HP DesignJet T1700 Datasheet


Print technologyHP Thermal Inkjet
Print languagesHP-GL/2, TIFF, JPEG, URF, CALS G4
Optional print languagesAdobe PostScript 3; Adobe PDF 1.7 ext 3
Model size1118 mm
Guaranteed minimum line width0.06 mm (ISO/IEC 13660:2001(E))[3]
Guaranteed minimum line width footnoteMeasured on HP Matte Film
Theoretical minimum line width0.02 mm (PDF addressable @ 1200 dpi)
Line accuracy±0.1%[2]
Line accuracy note±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks
Print speed line drawing (economode, A1 plain paper)116 pages per hour[1]
Print time black and white line drawing (draft, metric A1 plain paper)33 sec/page
Print time line drawing (economode, A1 plain paper)26 sec/page[1]
Maximum optical density (black)2.15 maximum black optical density (6 L*min)
Print quality color (best)Up to 2400 x 1200 optimized dpi
Maximum optical density footnote (black)With HP Premium Instant Dry Photo Gloss media with Original HP inks
Non-printable area (cut-sheet)3 x 17 x 3 x 3 mm
Non-printable area (roll media)3 x 3 x 3 x 3 mm
Printer drivers includedRaster drivers for Windows and macOS; PostScript and PDF Windows drivers and macOS PostScript driver with optional PostScript/PDF Upgrade Kit
Internal Storage500 GB self-encrypting
Memory128 GB (virtual)[4]
Connectivity, standardEthernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
Connectivity, optionalHP USB 3.0 to Gigabit LAN Adapter
Network readyStandard
HP ePrint capabilityYes
Mobile printing capabilityDirect print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android
Memory NoteBased on 4 GB DDR3 RAM
Number of print cartridges6 (cyan, magenta, yellow, photo black, matte black, gray)
Print cartridge volume deliveredCyan, magenta, yellow, photo black, matte black, gray (300 ml); Cyan, magenta, yellow, photo black, matte black, gray (130 ml)
Print heads3 universal printheads, 2 colors each
Print head nozzles2112 each color
Ink drop6 pl
Ink typesDye-based (C, M, Y, PK, G); pigment-based (MK)
Finished output handlingSheet feed, two automatic roll feeds, automatic roll-switching, media bin, automatic horizontal cutter
Media typesBond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl)
Media sizes supportedA4; A3; A2; A1; A0
Media sizes, custom210 x 279 to 1118 x 1676 mm
Media sizes standard (metric rolls)279 to 1118-mm
Media width, maximum1118 mm
Media weight, recommended60 to 328 g/m²
Media thicknessUp to 31.5 mil
Roll external diameter135 mm
Roll maximum input2
Roll maximum weight11.9 kg
Recommended mediaC6810A HP Bright White Inkjet Paper (FSC® certified) 914 mm x 91.4 m (36 in x 300 ft);C6569C HP Heavyweight Coated Paper 1067 mm x 30.5 m (42 in x 100 ft);Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified) 1067 mm x 30.5 m (42 in x 100 ft);Q1406B HP Universal Coated Paper (FSC® certified) 1067 mm x 45.7 m (42 in x 150 ft)
Supported Primary ApplicationsLine drawings; Maps; Orthophotos; Presentations; Renderings
Dimensions without stand (W x D x H)1802 x 695 x 998 mm
Package dimensions (W x D x H)1955 x 770 x 710 mm
Weight74 kg
Package weight128 kg
What's in the boxHP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits
Software includedHP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS
Warranty2 Years Limited Warranty (Next Business Day On-Site)
