Features highlight

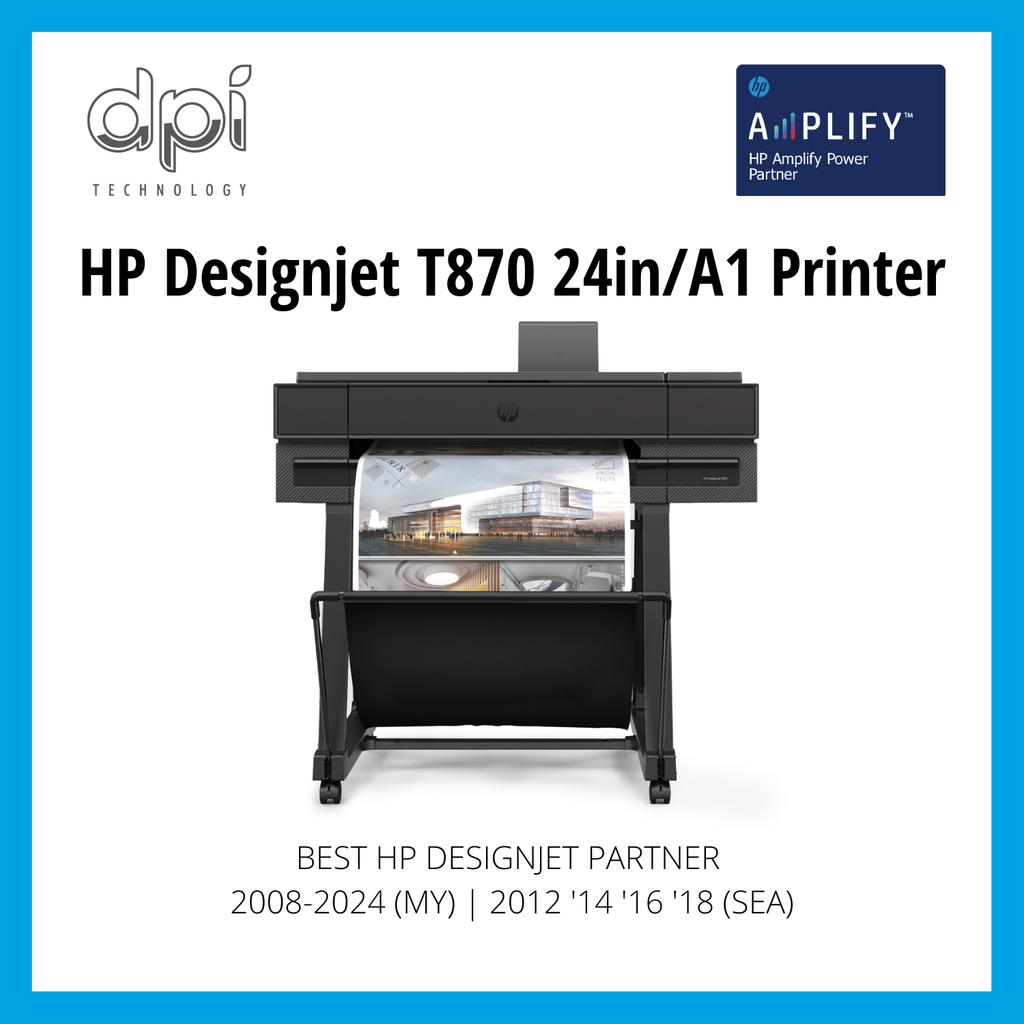

The HP DesignJet T870 is a new-generation 24-inch (A1) plotter. It prints an A1 drawing in about 21 seconds (90 A1 per hour), switches between A4 and A1 without manual media changes, and uses water-resistant HP Flex Tech pigment inks. It suits hybrid AEC offices that want fast, durable A1 prints.
Up to 30% lighter, quieter, and more energy-efficient than previous models.
Seamlessly print from A4/A to A1/D—no manual media switching required.
Delivers A1/D prints in as little as 21 seconds.
With HP Click Solutions, preview jobs, detect errors, and print from any device.
HP Flex Tech Inks produce sharp CAD drawings and vivid graphics for all print needs.
Smarter, Faster, and More Sustainable Tools for the Modern AEC Professional
Today’s architects, engineers, and construction professionals face constant pressure to design faster, collaborate across teams, and meet tight deadlines—all while maintaining creativity and precision. At HP, we understand these challenges. That’s why we’re introducing innovations that connect every stage of the workflow, from concept to construction.
Compact. Smart. Built for Hybrid Work.
The HP DesignJet T870 is a new-generation 24-inch printer created for hybrid workspaces and multi-user environments in AEC, education, and retail.
Download: HP DesignJet T870 Datasheet
Is the HP DesignJet T870 24in right for you?
- Architecture and M&E offices printing mostly A1 that need water-resistant prints
- Multi-user offices printing mixed A4 to A1 jobs
- Teams upgrading from older 24-inch plotters
- Need A0? HP DesignJet T850
- Lower budget, office use only? HP DesignJet T650 24in
- Free delivery and installation within Greater KL and the Klang Valley, with set-up, software installation, operator training and test prints (a surcharge may apply elsewhere in Malaysia).
- Onsite service and repair by DPI's HP-certified DesignJet engineers.
- Genuine HP inks, printheads and plotter paper in stock.
- HP promotions change every quarter. WhatsApp +60 17-791 7001 (Monday to Friday, 9:00 am to 5:30 pm) for this quarter's offer.
How fast is the HP DesignJet T870 24in?
A1 prints per hour across the HP DesignJet range we sell, so you can see where this model sits.
A1 line drawings per hour, from HP specifications. Real speed depends on the file, media and print mode.
Technical specifications
- Print speed, maximum
- 21 sec/page on A1, 90 A1 prints per hour
- Memory
- 1 GB
- Print quality color (best)
- Up to 2400 x 1200 optimized dpi
- Print technology
- HP Thermal Inkjet
- Ink types
- HP 738 Flex Tech Inks (Pigment-based)
- Number of print cartridges
- 4 (Cyan, Magenta, Yellow, Matte Black)
- Finished output handling
- Sheet feed, roll feed, input tray (50 sheet capacity), media bin, automatic cutter
- Media weight, recommended
- 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)
- Media sizes standard
- 369 to 610 mm (rolls)
- Connectivity
- Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
- Mobile printing
- Wi-Fi Direct, Apple AirPrint, HP app, Chrome OS support
- Dimensions (W x D x H)
- 1100 x 690 x 935 mm
- Weight
- 38.5 kg
- Product name
- HP DesignJet T870 Printer
- Manufacturer Warranty
- One-year limited hardware warranty
- Subcategory
- Large format (24-inch)
HP DesignJet T870 24in vs similar models
| Model | HP DesignJet T870You are here | HP DesignJet T650 24inCompare | HP DesignJet T850Compare | HP DesignJet T250Compare |
|---|---|---|---|---|
| Max roll width | 24 in (A1) | 24 in (A1) | 36 in (A0) | 24 in (A1) |
| A1 prints per hour | 90 | 81 | 90 | 76 |
| Ink | HP 738 pigment | HP 712 | HP 738 pigment | HP 712 |
| Scan & copy | — | — | — | — |
| Warranty | 1 year | 3 years | 1 year | 3 years |
Questions about the HP DesignJet T870 24in
The T870 is faster, about 21 seconds per A1 against 26, and its HP Flex Tech pigment inks resist water, smudging and highlighter bleed, which suits drawings taken to site. The T650 24in costs less, and its dye-based colour inks are fine for office prints. Both print up to A1 and handle A4 and A3 sheets.
No. It takes rolls from 369 to 610 mm (24 inches) wide, so A1 is its largest standard size. For A0 drawings choose the 36-inch T850 or T950, which use the same HP 738 inks and HP 739 printhead, so supplies are shared if you run both.
HP 738 ink cartridges and the HP 739 printhead, the same supplies as the T850 and T950. All four inks are HP Flex Tech pigment inks, and each colour is replaced on its own. DPI keeps both the ink and the printhead in stock.
A one-year limited hardware warranty from HP, which HP sometimes extends to three years in quarterly promotions. You can also extend cover with an HP Care Pack, which gives next-business-day onsite support anywhere in Peninsular Malaysia and Sabah/Sarawak.
HP runs a different promotion on the T870 each quarter, often with an extended 3-year warranty, so message us and we'll email you this quarter's promotional quotation. Every unit includes free delivery and installation within Greater KL and the Klang Valley, with set-up, software installation, operator training and test prints (a surcharge may apply for other locations). It's a compact 24-inch plotter that prints A4 to A1 from one tray with water-resistant HP Flex Tech inks, ideal for small studios and hybrid offices. Ask us about 0% instalments. WhatsApp +60 17-791 7001; we reply Monday to Friday, 9:00 am–5:30 pm.
